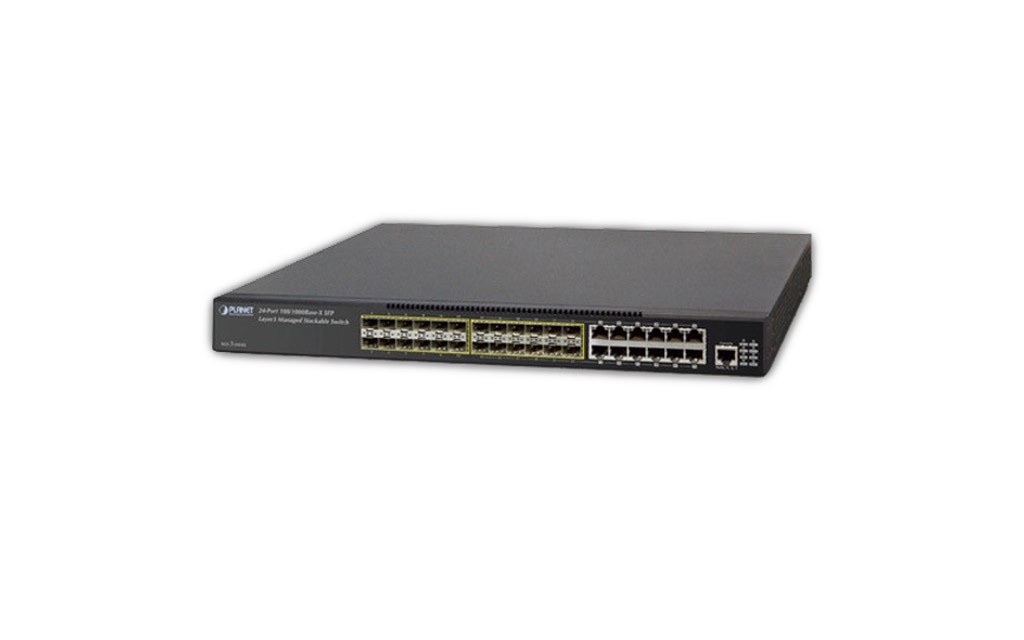

سوئیچ ۲۴ پورت استوک پلنت مدل XGS3-24242
Physical Port (سوئیچ ۲۴ پورت استوک پلنت مدل XGS3-24242)
• ۲۴ ۱۰۰/۱۰۰۰Base-X mini-GBIC/SFP slots
• ۱۲-Port 10/100/1000Base-T RJ-45 copper, shared with Port-13 to Port-24
• ۲ ۱۰G module slots, support up to ۴ ۱۰G SFP+ transceivers
• ۱ RJ-45 serial console interface for switch basic management and setup
IP Stacking
• Connects with stack member via both Gigabit TP/SFP interface or 10G stack slots
• Single IP address management, supports up to 24 units stacked together
IP Routing Features
• IP Routing protocol supports RIP v1/v2, OSPF v2/v3, BGP4/4+
• Routing interface provides Per-VLAN routing mode
• VRRP v1/v3 protocol for redundant routing deployment
• Supports route redistribution
Multicast Routing Features
• Supports PIM-DM(Protocol Independent Multicast – Dense Mode) and PIM-SM (Protocol Independent Multicast – Sparse Mode)
• Supports DVMRP (Distance Vector Multicast Routing Protocol)
• Supports IGMP v1/v2/v3 and MLD v1/v2
Layer 2 Features
• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standards
• Supports auto-negotiation and half duplex / full duplex modes for all 10Base-T / 100Base-TX and 1000Base-T ports
• Auto-MDI / MDI-X detection for each RJ-45 port
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance of Store-and-Forward architecture, broadcast storm control and runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
• ۱۶K MAC address table, automatic source address learning and ageing
• Supports VLAN
– IEEE 802.1Q Tagged VLAN
– Up to 4K VLANs groups, out of 4096 VLAN IDs
– Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
– GVRP protocol for VLAN Management
– Private VLAN Edge (PVE)
– Voice VLAN
– MAC-based VLAN
– Protocol-based VLAN
• Supports Spanning Tree Protocol
– STP, IEEE 802.1D (Spanning Tree Protocol)
– RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
– MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
• Supports Link Aggregation
– ۸۰۲٫۳ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (Static Trunk)
– Maximum 16 trunk groups, up to 8 ports per trunk group
– Up to 16Gbps bandwidth (duplex mode)
• Provides Port Mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing traffic on a particular port
Quality of Service
• ۸ priority queues on all switch ports
• Supports for strict priority and Weighted Round Robin (WRR) CoS policies
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• Traffic-policing policies based on application
Multicast
• Supports IGMP Snooping v1, v2 and v3
• Support MLD Snooping v1 and v2
• Querier mode support
• MVR (Multicast VLAN Registration)
Security
• IEEE 802.1x Port-based network access authentication
• MAC-based network access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Static MAC
• MAC address binding & filter
• ARP inspection to defense ARP-DOS attack and address clone
• Supports URPF to avoid IP address clone
Management
• Switch Management Interfaces
– Console / Telnet Command Line Interface
– Web-based switch management
– SNMP v1, v2c, and v3 security set and get requests
– SSH (Secure Shell) / SSL secure access
• Four groups (history, statistics, alarms, and events) of embedded remote monitoring (RMON) agents for network monitoring and traffic analysis
• Built-in Trivial File Transfer Protocol (TFTP) client
• IPv6 IP Address / NTP / DNS management
• DHCP Relay
• User Privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) Protocol
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via HTTP / TFTP
Redundant Power System
• ۱۰۰~۲۴۰V AC / -48V DC Dual power redundant
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply[/vc_column_text][/vc_column][/vc_row]
